LUPE
Code: BIMBA-90 / 90 3C
Code: BIMBA-90 / 90 3C
BIMBA-90 / 90 3C

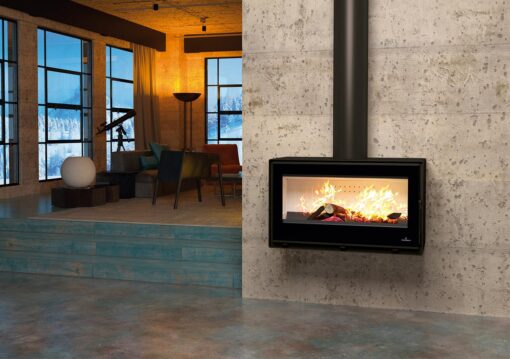

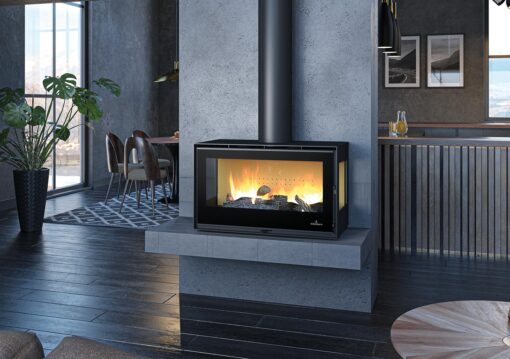

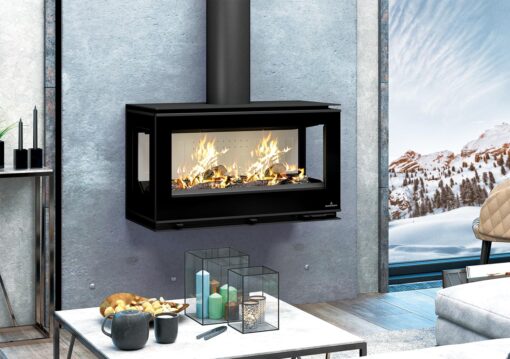

Panoramic 3 sided and front-facing stove with fan
Main features
– Door with black screen-printed glass.
– Interior en vermiculite.
– Cast iron grate.
– Includes 2 fans of 160 m3\h with 2 speeds switch and thermostat.
– Primary air inlet regulation.
– Triple Combustion System.
– Glove and spray paint included.

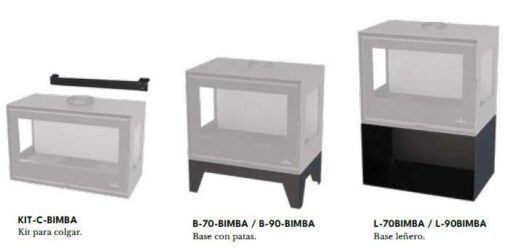

Optional elements:
– KIT-AIR-14: External air kit. To become airtight.
– KIT-C-BIMBA: Kit for wall hanging.

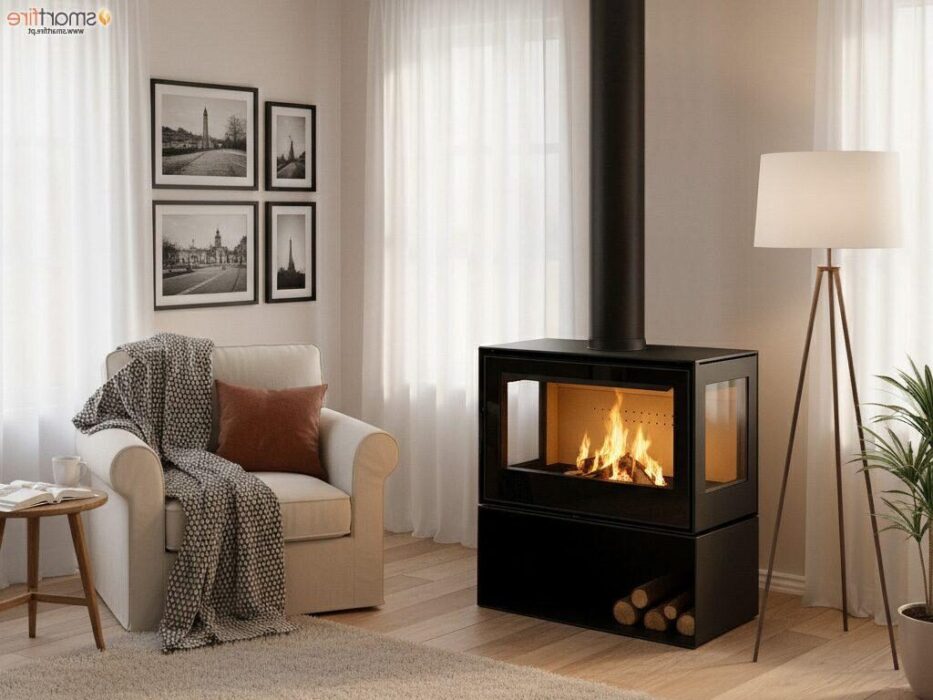

– L-90BIMBA: Woodshed base.
– B-90-BIMBA: Base with legs.
Colours available: Black
Technical details
kW Nom.:
15
Heating volume (m3):
350
Performance (%):
81
Consumption (kg/h):
4,1
Smoke outlet diameter (cm):
20
Forced ventilation (m3/ h):
2×160
Peso (Kg):
114
Max. size logs (cm):
80
Medidas boca útil:
896x535x438
Material exterior:
Steel and cast iron
Material cámara combustión:
Vermiculite
Systems
Clean Glass System
Safety System Fans
Triple Combustion System
