DENVER/ DENVER VISION
Oven insert with fans
Main features
– Cast iron grate.
– Interior en vermiculite.
– Primary air inlet regulation.
– Triple Combustion System.
– Oven Enclosure System.
– Includes 2 fans of 160 m3/h with 2 speeds switch and a thermostat
– With channeling possibility (includes 2 micro-perforated outlets to channel air up to 3 meters, includes channeling collars).
– Oven with refractory brick and 500 degrees thermometer to control the temperature.
– Includes grill of 597×372 mm.
– Glove and spray paint included.
Optional elements:

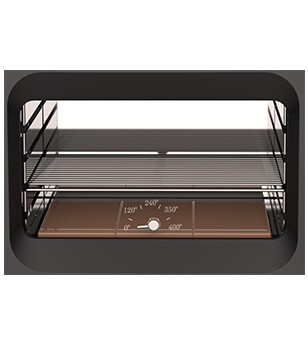

-KIT-INOX-D: Kit with inner lining for the oven in stainless steel.
Colours available: black
Technical details
kW Max. Min to the air:
18 – 6
kW Nom.:
15
Heating volume (m3):
375
Performance (%):
84
Consumption (kg/h):
3,8
Smoke outlet diameter (cm):
20
Forced ventilation (m3/ h):
2×160
Channelling (Meters x outputs):
3m. x 2 (120)
Peso (Kg):
140 (D), 142 (D-V)
Max. size logs (cm):
65
Medidas boca útil:
607x265x395
Measurements of the oven useful space:
607x188x380
Material exterior:
Steel
Material cámara combustión:
Vermiculite
Systems
Clean Glass System
Oven Enclosure System
Safety System Fans
Triple Combustion System
