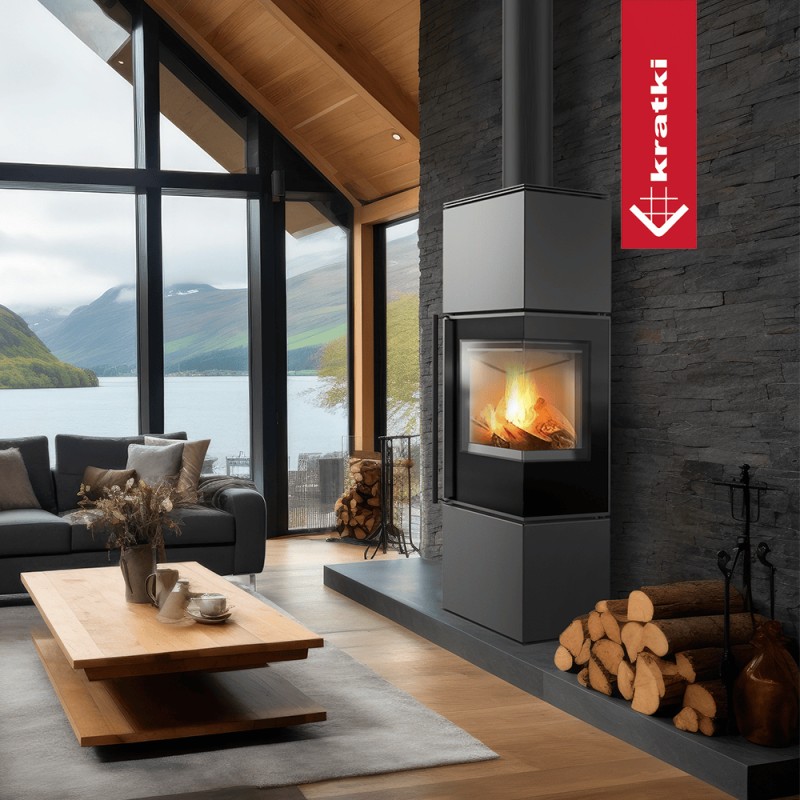

The REN freestanding stove was created with the most demanding customers in mind. Its attractive appearance and beautiful vision of fire attract attention, giving the room a unique character.
REN is ideal for use in open and semi-open spaces, combining for example a kitchen with a dining area or a living room with a kitchenette in an attractive manner. It is a stove that not only offers comfort and safety, but is also characterized by a modern design that fits in perfectly with various interior arrangements.
The stove meets the requirements of the ECODESIGN, as well as the strict German BlmschV II standard.
Technical data
General data
| Rated output (kW) |
7.3 |
| Heating power range (kW) |
4,3-10,3 |
| Heating efficiency (%) |
80.2 |
| Exhaust gas temperature (℃) |
250 |
| Max length of logs (cm) |
25 |
| Color |
Black |
| Self Closure |
No |
| Version |
Corner left |
| Door opening direction |
Left |
| Materials |
Steel |
| Flue outlet diameter (mm) |
150 |
| Air intake diameter (mm) |
100 |
Energetic efficiency
| Energy class |
A |
| Energy efficiency index (EEI) |
106.3 |
| Seasonal Heating efficiency (%) |
70.2 |
| Thermal power for space heating (kW) |
7.3 |
| CO emissions (at 13% O 2 ) ≤ given in % |
0.042 |
| CO emission (mg/m3) |
526 |
| Dust emission (mg/Nm3) |
33 |
| NOx emission (mg/m3) |
166 |
| OGC emission (mg/m3) |
30 |
| Flue gases mass flow rate (g/s) |
6.7 |
Certifications / Compliance
| Meets requirements |
KRATKI PRO, Eco design, Designed for recuperation, BImSchV 2, 7* Flame Verge |
Additional information
| Design features |

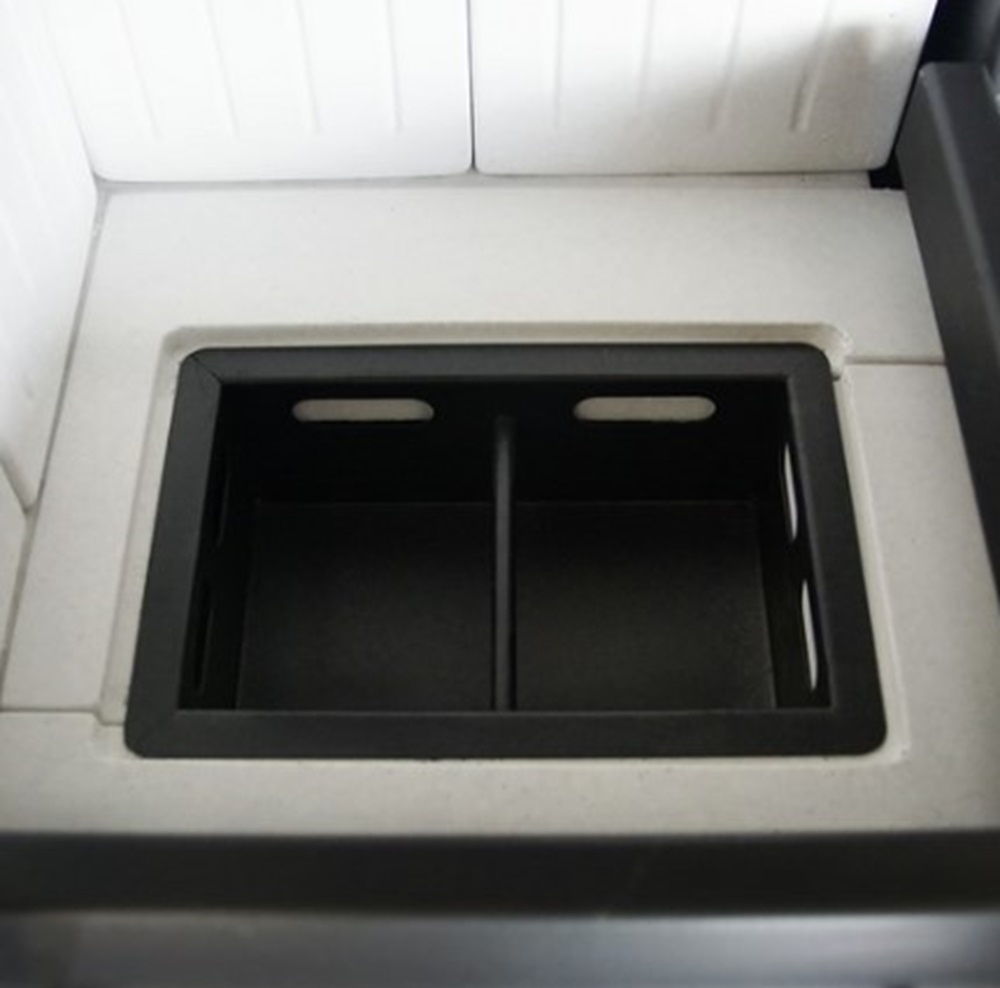

Air intake – built in , Ashpan, Combustion chamber lining, Decorative glass |
| Front type |
Steel front with painted glass |
| Type of fuel |
Seasoned deciduous wood (humidity ≤20%) |
| EAN |
5903751225607 |
Physical parameters
| Width (cm) |
45.2 |

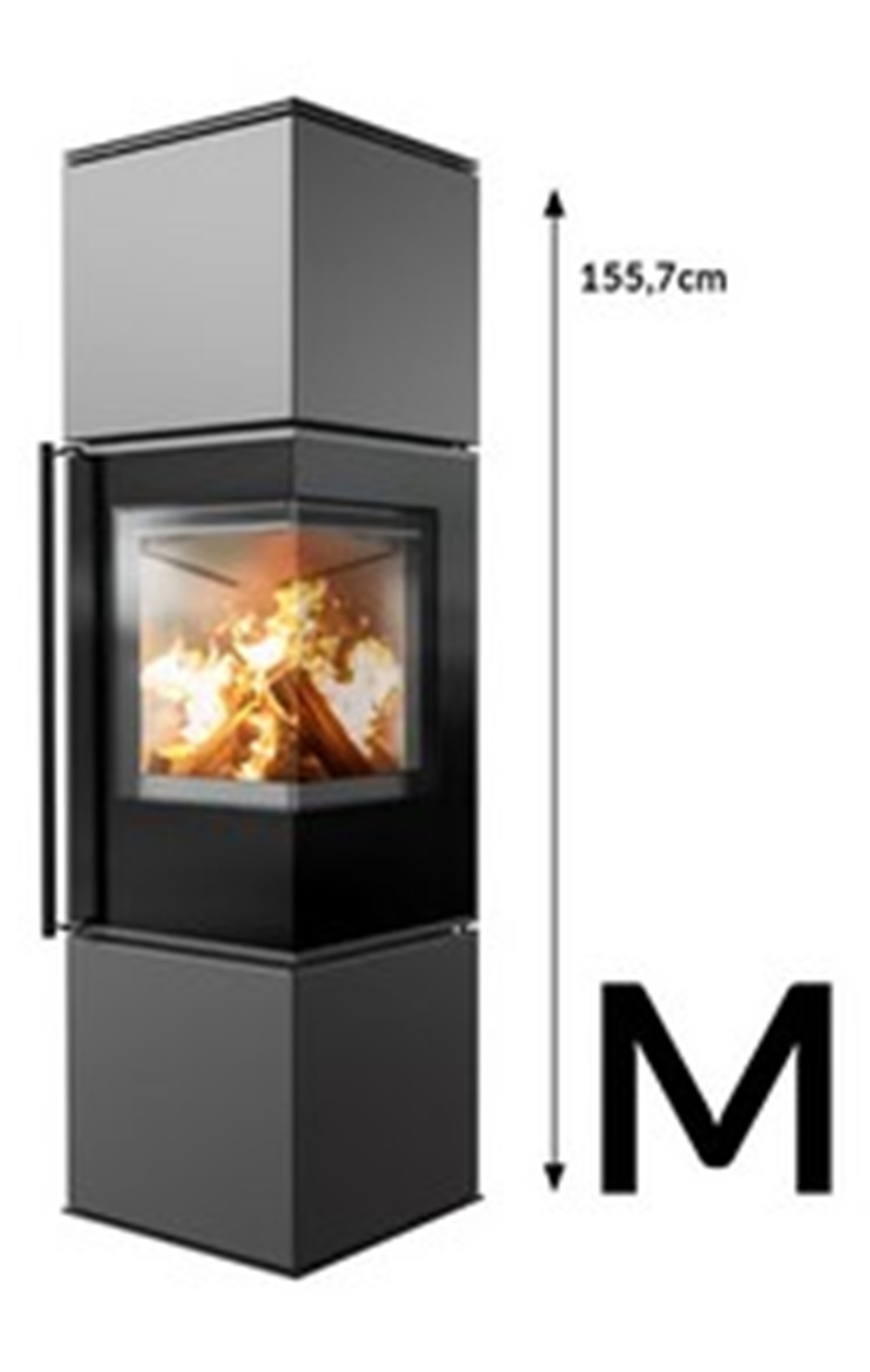

| Height (cm) |
155.7 |
| Depth (cm) |
45.2 |
| Weight (kg) |
165 |
In addition, it has been designed to meet the strict Flame Vertex environmental standards, guaranteeing high efficiency, clean combustion and reduced emissions. So you can enjoy a cozy atmosphere in your home while minimizing your impact on the environment.

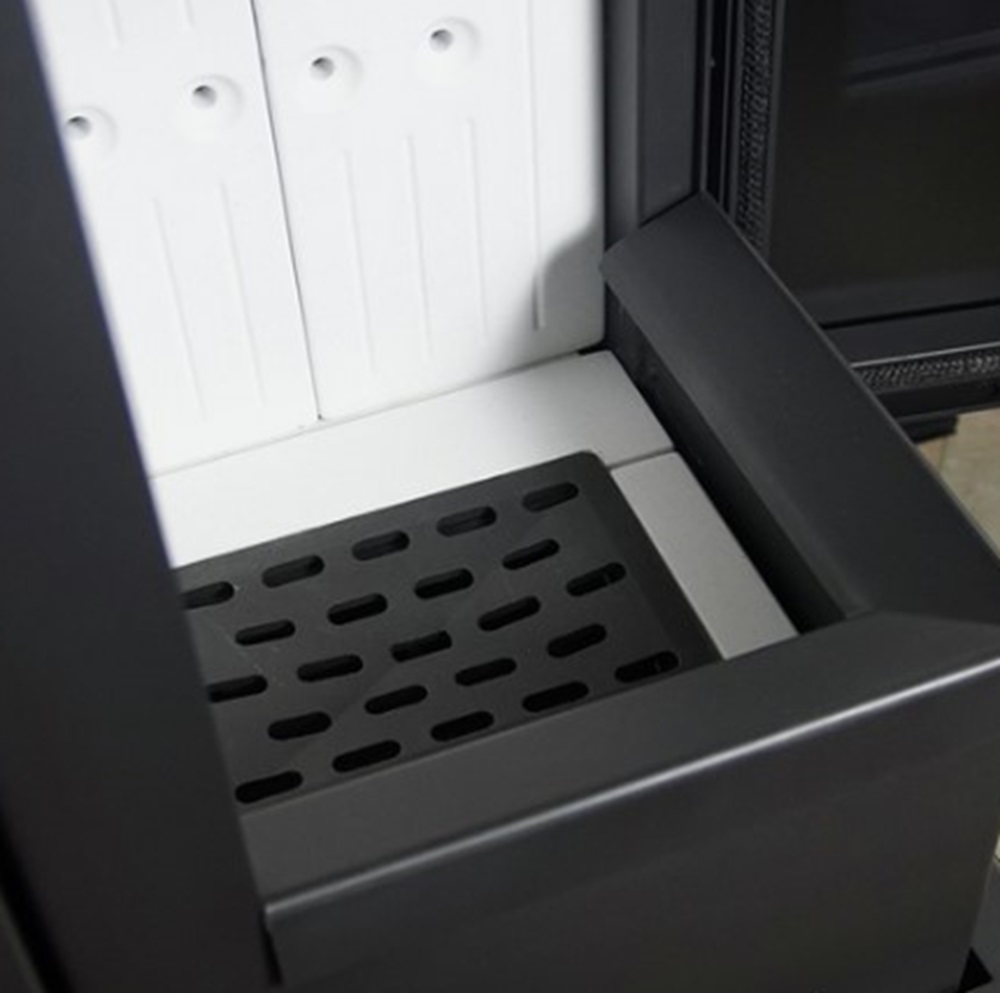

Primary air, which facilitates the firing of wood, is supplied under the grate.
Secondary air is distributed to the rear wall of the combustion chamber. It ensures efficient combustion of the gases, reducing smoke and the emission of harmful substances into the environment.
The air curtain is a secondary source of combustion air, the jet of which sweeps the glass, effectively removing soot particles and limiting their deposition on the glass.
The combustion of fuel particles takes place thanks to two deflectors that extend the flue gas path. This process also increases combustion efficiency and guarantees better energy utilization, thus minimizing the emission of harmful substances into the atmosphere.
