Code: OLIWIA / DECO

1,875.00 1,550.00

Code: OLIWIA / DECO

1,875.00 1,550.00

Categories: , . Tag: .

OLIWIA 18 DECO

A fireplace with a timeless design is the first choice among people looking for a classic insert.

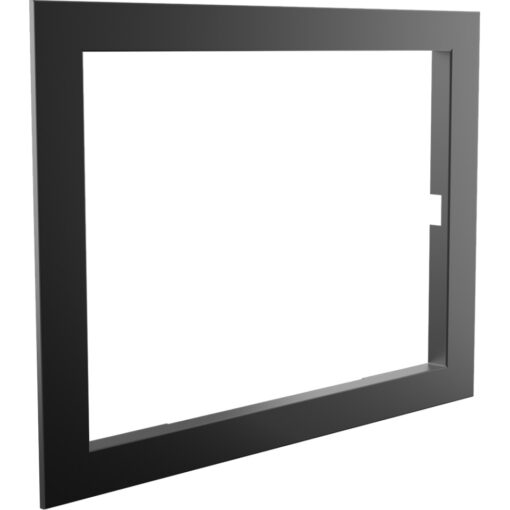

OPTIONAL STEEL FRAME EUR80

Technical data

Nominal power (kW)18.0
Heating power range (kW)9.0 – 23.0
Thermal efficiency (%)79.0
Exhaust outlet diameter (mm)200
Meets the ECODESIGN criteriaNo
Intended for recuperationNo
Type of fuelseasoned hardwood (moisture ≤20%), abgelagertes hartholz (feuchtigkeit ≤20%), bois dur séché (humidité ≤20%), madeira dura sazonada (humedad ≤20%), seasoned hardwood (humidity ≤20%), legno duro stagionato (umidità ≤20%), legno duro stagionato (umidità ≤20%), высушенная лиственная древесина (влажность ≤20%)
CO emission (at 13% O 2) ≤ given in%0.15
Exhaust gas temperature (℃)383.0
Max log length (cm)50
The issue of pollen (dust) (mg / Nm 3 )31.0
Compliance with BImSchV 2 standardNo
Energy efficiency index EEI104.10
The minimum active field of outlet grilles (cm 2 )≥1000
The minimum active field of inlet grilles (cm 2 )≥800
Type of glazingflat, flache vorderseite, front plat, frente plano, straight, fronte piatto, plochá přední strana, плоский фасад
Opening the doorleft-hand, links, à gauche, a sinistra, left, a sinistra, levá ruka, левый
Material of executionsteel, cast iron, stahl, gusseisen, acier, fonte, acero, hierro fundido, cast iron; steel, acciaio, ghisa, ocel, litina, сталь, chugun
Width (cm)73.80
Height (cm)81.00
Depth (cm)43.70
Air intakeNo
The lining of the combustion chamberNo
AshpanYes
Decorative glass type glassYes

Advantages

MAXIMUM USE OF ENERGY

Maximum use of heat thanks to the densely placed heat sinks and the walls of the furnace made of high-quality cast iron with a thickness of 8 mm.

Increased heat exchange surface between hot exhaust gases and the room due to the high flue.

Afterburning of fuel particles thanks to a deflector that extends the exhaust path.

Increased efficiency of the insert through manual adjustment of the chimney draft using the built-in damper.

Manual control over the combustion process by the ash pan shift.

SAFETY AT THE HIGHEST LEVEL

The front of the insert is equipped with a heat-resistant ceramics that can withstand temperatures up to 660 ° C.

A decorative fence helps to keep the use clean and protects against falling out of the wood.

COMFORTABLE USE

A drawer / ash container, in which the remains of burnt wood are collected, and a movable grate that facilitates the removal of ash.

Reduction of soot deposition thanks to the clean glass system (air guide).

Elegant and comfortable handle.

MODERN DESIGN

The front of the insert is made of steel intended for operation at elevated temperatures.

Decorative, heat-resistant glass that can withstand temperatures up to 660 ° C, which gives the fireplace a modern and elegant look, optically enlarges the front of the insert.

5-year warranty.
