Freestanding

STOVE K5 S with a

closed niche for wood

Categories: , . Tag: .

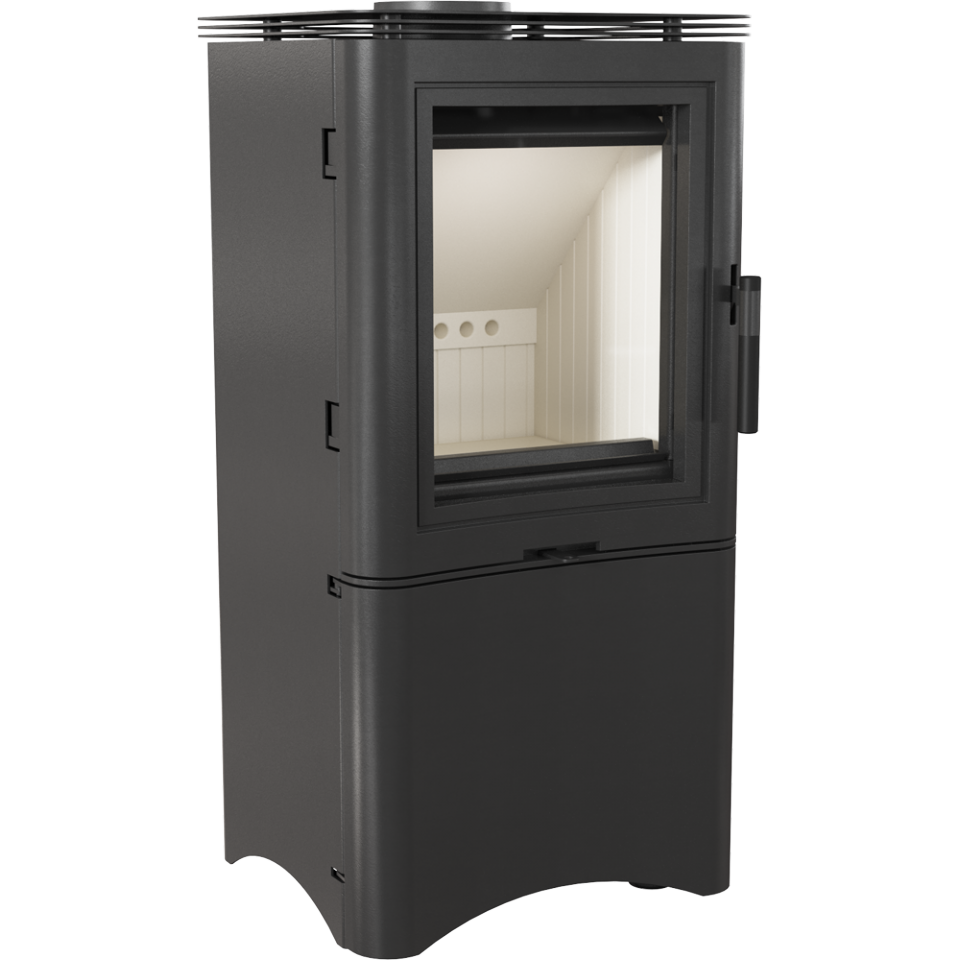

Freestanding STOVE K5 S with a closed niche for wood

Stove K5 is a tradition in the new version. Despite its small size, it has excellent thermal parameters.

Technical data

Rated output (kW)7,0
Range of heating power (kW)5.5 – 9.0
Efficiency (%)76,0
Exhaust outlet diameter (mm)150
Designed for heat recovery unitNo
Fuel typepermissible briquette lignite recommended seasoned hardwood
Weight (kg)118,0
CO emission (at 13% O 2 ) ≤ given in %0,09
Flue gas temperature (℃)250,0
Max log length (cm)25
The issue of pollen (dust) (mg / Nm 3 )40.0
Compliance with BlmSchV 2 standardYes
Glazing typeproste
Opening of the doorsto the left
Materialstal
Width (cm)46,20
Height (cm)94,20
Depth (cm)40,00
External air inletNo
The liner of the combustion chamberYes
AshpanYes
Decorative printed glassNo
ASDP – automatic control of the air supplyNo
Turbine TURBOFANNo
Panel, waterNo
