Code: JAS / PF
€1,150.00 €900.00
Code: JAS / PF
€1,150.00 €900.00

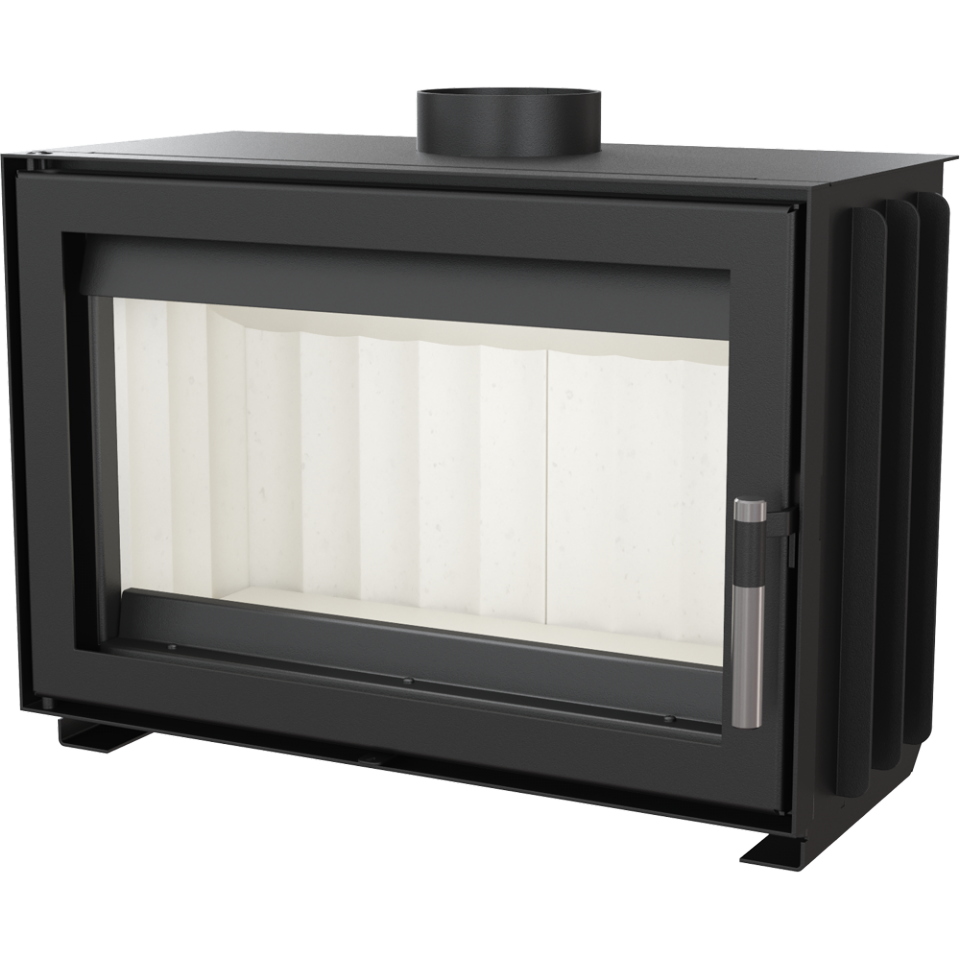

JAS 6
Modern contribution to its small size, the interior of which is lined with a material that accumulates heat.
Technical data
Field of the active grid (cm 2 )≥500
Nominal power (kW)7.0
Range of heating power (kW)3.3 – 9.9
Thermal efficiency (%)71.0
Diameter of the pipe (mm)150
Designed for recoverynot
Fuelallowed lignite briquettes recommended seasoned hardwood
Weight (kg)61.0
CO (with 13% O 2) given in% ≤0.15
Flue gas temperature (℃)316.0
Max log length (cm)40
The issue of pollen (dust) (mg / Nm 3 )67.0
Compliance BlmSchV 2Not
Minimum field open outlet grilles (cm 2 )≥700
Minimum field open inlet grilles (cm 2 )≥500
Type of glazingSimple
Opening the doorto the left
Materialsteel
Width (cm)67.60
Height (cm)54.30
Depth (cm)30.60
Air intakenot
The liner of the combustion chamberYes
ashpannot
Decorative glass type glass not
