NBC 7 left / right BS guillotine

The small size of the NBC insert with three-sided glazing combines unique aesthetics and exceptional utility properties. In addition to the visual qualities, the device guarantees efficient heating of rooms and ecological wood combustion.

Technical data

Nominal power (kW)7.0
Heating power range (kW)3.0 – 9.0
Thermal efficiency (%)83.0
Exhaust outlet diameter (mm)160
Meets the ECODESIGN criteriaYes
Intended for recuperationYes
Type of fuelseasoned hardwood (moisture ≤20%), abgelagertes hartholz (feuchtigkeit ≤20%), bois dur séché (humidité ≤20%), madeira dura sazonada (humedad ≤20%), seasoned hardwood (humidity ≤20%), legno duro stagionato (umidità ≤20%), legno duro stagionato (umidità ≤20%), высушенная лиственная древесина (влажность ≤20%)
CO emission (at 13% O 2) ≤ given in%0.10
Exhaust gas temperature (℃)199.0
Max log length (cm)40
The issue of pollen (dust) (mg / Nm 3 )29.0
Compliance with BImSchV 2 standardYes
Energy efficiency index EEI111.40
The minimum active field of outlet grilles (cm 2 )≥700
The minimum active field of inlet grilles (cm 2 )≥500
Type of glazingcorner, ecke, coin, esquina, corner, angolo, roh, kornewoй
Opening the doorlifted up, hochgehoben, levé, sollevata, up, sollevata, zvedl, поднятый
Material of executionsteel, stahl, acier, acero, steel, acciaio, ocel, стальной
Width (cm)75.20
Height (cm)124.50
Depth (cm)50.20
Air intakeYes
The lining of the combustion chamberYes
Decorative glass type glassYes


The small size of the NBC insert with three-sided glazing combines unique aesthetics and exceptional utility properties . Apart from the visual qualities, the device guarantees efficient heating of rooms and ecological wood combustion . Thanks to the use of modern materials and innovative technical solutions, it is characterized by very good technical parameters. One of its many advantages is the possibility of connecting an external air intake . The elegance of the insert is added by decorative glass glazing . In addition, it has a parental lock that protects against unauthorized opening of the door upwards.



The insert ensures safety of use because it has the so-called parental lock, protecting against unauthorized opening of the door up.

The front of the insert is equipped with a heat-resistant ceramics that can withstand temperatures up to 660 ° C. The installed glass has a quality and safety certificate.

The body and the front of the insert are resistant to high temperatures thanks to the use of high-quality steel.

The door frame is made of a closed profile, which makes it stable and resistant to stresses occurring during operation at high temperatures. Perfect tightness of the insert is guaranteed thanks to solid welds made in a noble gas shield. Steel elements cut with laser cutters and then bent on CNC bending machines.


The device meets the Ecodesign requirements and the BImSchV 2 standard , which determines the maximum CO emission.

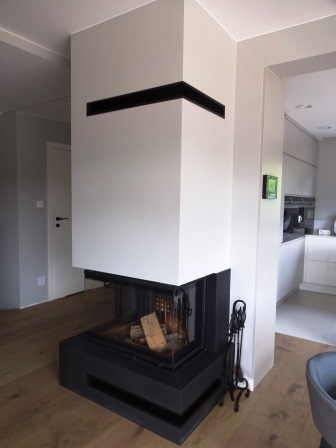

NBC attracts attention with its modern design and aesthetic finish. It impresses with a harmonious vision of fire, giving the interior a unique style. The heat radiates not only frontally but also sideways.

The fireplace is equipped with a single, decorative glass, which makes it look elegant and modern. The use of this solution optically enlarges the front of the insert and emphasizes the vision of fire.

The door of the insert has a convenient railing that makes it easier to open the door up.


The door of the insert works in the lift up system – the glass is lifted up. This system is built on the basis of a counterweight – steel cord pulleys run on 4 ball-bearing rollers (2 per side), thanks to which the door weight is evenly distributed. They move along the sliding guides mounted in the frame, which guarantees their light, quiet and trouble-free operation. Thanks to the raised and lowered doors, a large amount of wood can be loaded at once. An additional mechanism that allows the panes to be opened on both sides, which facilitates their cleaning.

The device is additionally equipped with a clean glass system – thanks to the so-called air curtain, the air stream is evenly distributed, sweeps the glass and minimizes the deposition of soot on it. This allows you to maintain the effective and clean look of the glass for a long time.

The fireplace has a specially profiled bottom plate made of TERMOTEC, thanks to which the combustion chamber is deeper and contains more wood, and the logs do not fall onto the glass.

Keeping the insert clean is easier thanks to the mounted grate and the container where the ash is collected.


More efficient combustion and longer temperature maintenance is achieved thanks to the lining of the combustion chamber with TERMOTEC, a heat-accumulating material that increases the temperature in the furnace. In addition, its smooth, white surface looks great inside the fireplace.

The combustion of fuel particles takes place thanks to the deflector, which extends the exhaust gas path, and the secondary air supply system. This process also increases the efficiency of combustion and guarantees better use of energy, and thus minimizes the emission of harmful substances to the atmosphere.

The device has a triple combustion chamber ventilation system, thanks to which wood combustion in the insert is ecological, and most importantly economical.

Primary air is supplied to the insert from the outside, thanks to the built-in 125 mm air inlet connection. The air inlet connection is located in the floor of the insert. Its regulation takes place by means of a built-in throttle set by one regulator, located below the door, which excludes errors in improper use. The whole mechanism works very quietly and flawlessly.


The NBC model meets the Ecodesign standards and the requirements of the restrictive BImSchV 2 standard, which determines the maximum CO emission.
