Code: MB120 / G

Code: MB120 / G

MB 120

Guillotine

Category: .

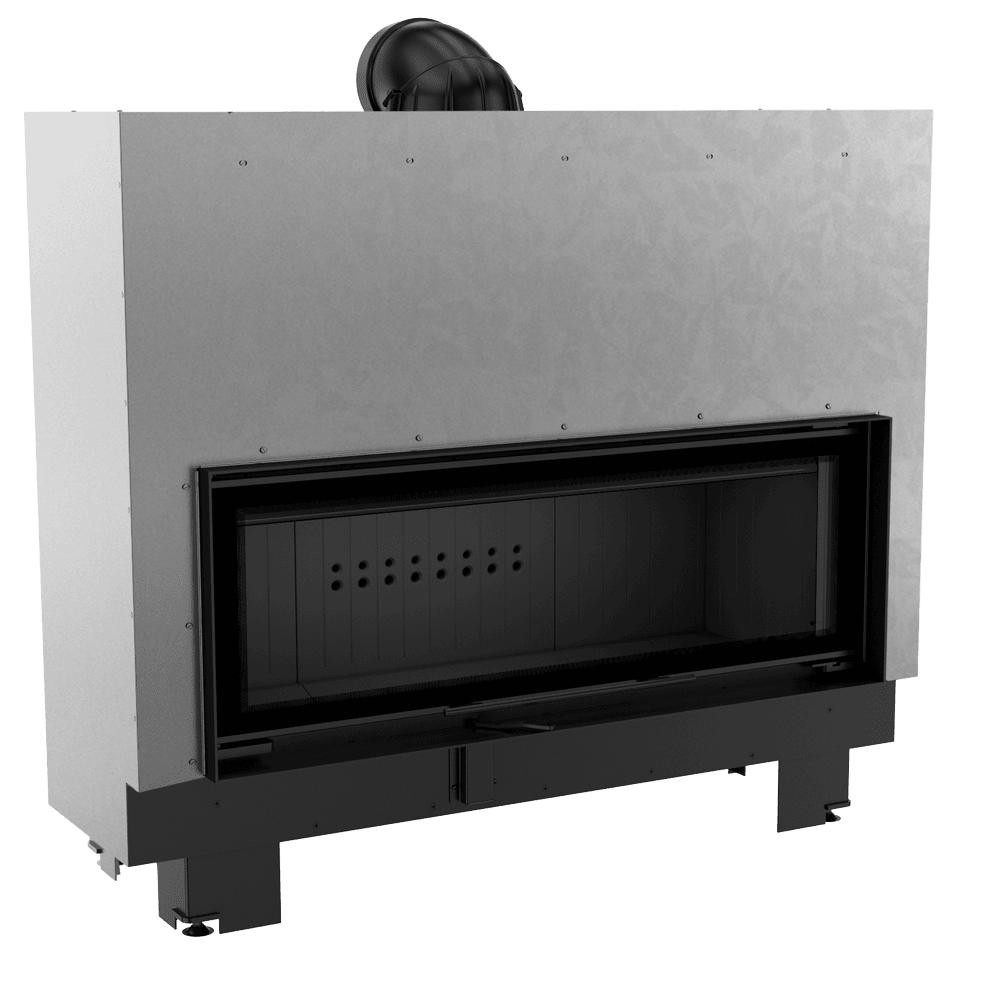

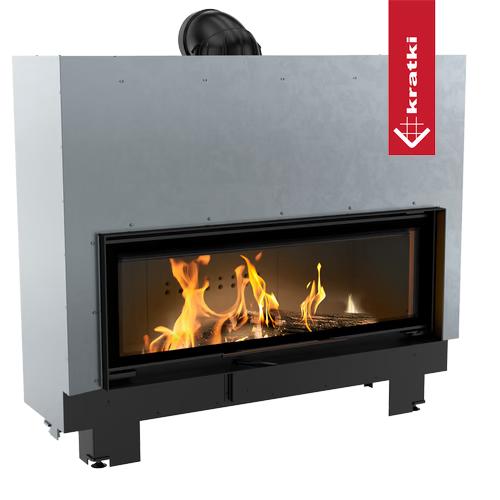

MB 120 guillotine

Exceptional attention to detail, excellent technical parameters and precision of execution and that the characteristics of this line contributions. MB 120 is a contribution to a wide, wide front.

Technical data

Nominal power (kW)22.0
Range of heating power (kW)13.0 – 31.0
Thermal efficiency (%)80.0
Diameter of the pipe (mm)200
Designed for recoveryYes
Fuelallowed lignite briquettes recommended seasoned hardwood
Weight (kg)400.0
CO (with 13% O 2) given in% ≤0.10
Flue gas temperature (℃)240.0
Max log length (cm)50
Compliance BlmSchV 2Yes
Minimum field open outlet grilles (cm 2 )≥1000
Minimum field open inlet grilles (cm 2 )≥800
Type of glazingSimple
Opening the doorto the top
Materialsteel

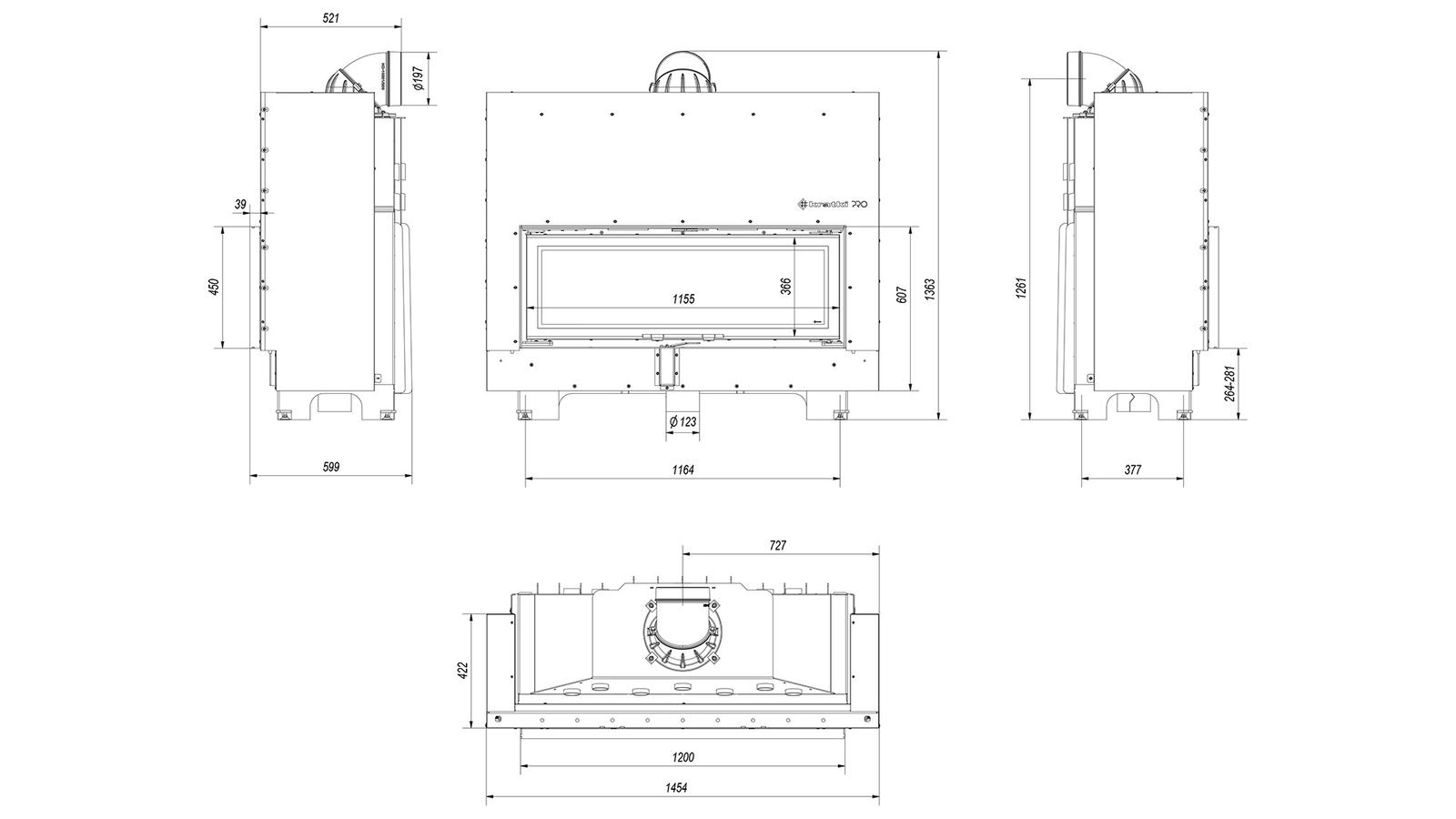

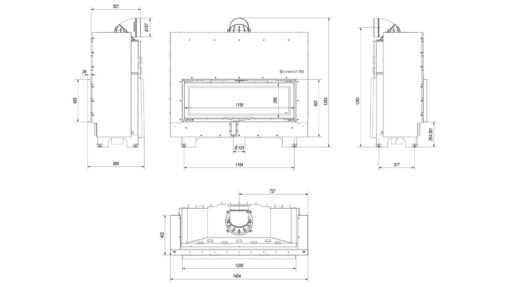

Width (cm)140.30
Height (cm)136.30
Depth (cm)52.00
Intake airYes
The liner of the combustion chamberYes
ashpannot
Decorative glass type glassYes
