Code: FRANEK / 14 / PF

Code: FRANEK / 14 / PF

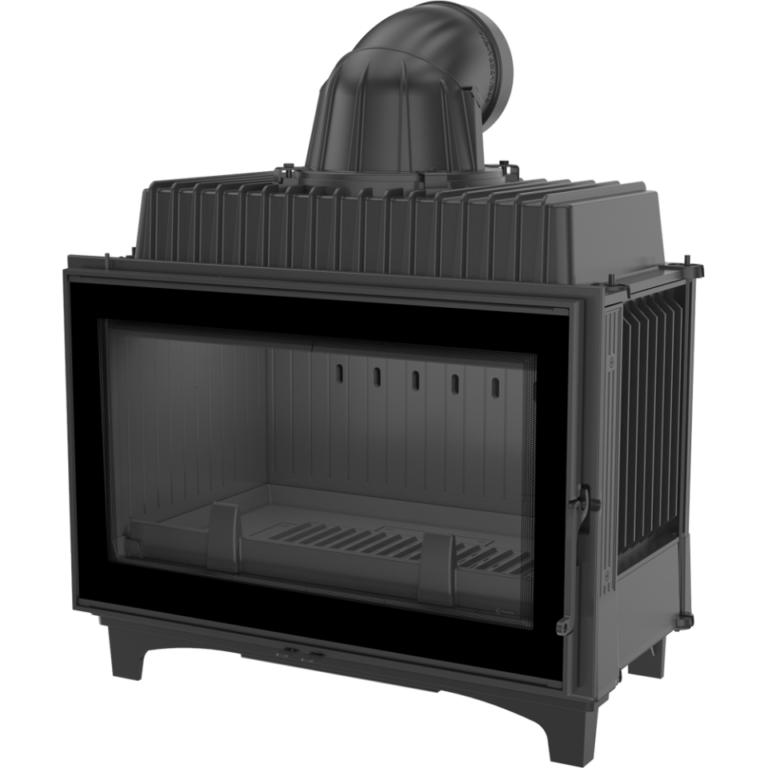

FRANEK 14

Category: .

FRANEK 14

The contribution of high heating capacity with a characteristic distribution of heat sinks, which increase the surface of the heating cartridge, an area which dissipated heat.

Technical data

Nominal power (kW)14.0
Range of heating power (kW)6.0 – 17.0
Thermal efficiency (%)81.0
Diameter of the pipe (mm)200
Designed for recoveryYes
Fuelallowed lignite briquettes recommended seasoned hardwood
Weight (kg)280.0
CO (with 13% O 2) given in% ≤0.10
Flue gas temperature (℃)250.0
Max log length (cm)60
The issue of pollen (dust) (mg / Nm 3 )19.0
Compliance BlmSchV 2Yes
Minimum field open outlet grilles (cm 2 )≥1000
Minimum field open inlet grilles (cm 2 )≥800
Type of glazingSimple
Opening the doorto the left
Materialcast iron
Width (cm)80.00
Height (cm)96.90
Depth (cm)47.60
Intake airYes
The liner of the combustion chambernot
